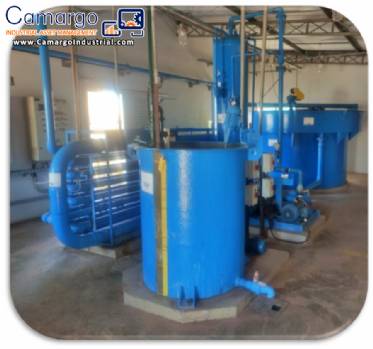

| Dissolved air flotation system, treatment plant, 30 m³/h, Consultec PA |
|
Dissolved Air Flotation (DAF) System.
Wastewater Treatment Plant.
Manufacturer: Consultec PA - Environmental Protection Technology.
Model: FAD C-30 FQ.
Approximate flotation capacity: 30 m³/h.
Composed of:
- Tubular hydraulic flocculator.
- FAD C-30 flotation tank with 0.16 HP WEG agitator motor.
- FAD C-30 recirculation skid with two pump sets.
With a 15 HP WEG motor and a 30 m³/h KSB pump.
- FRP tank for flocculant suspension.
- Inclined rapid mixer with a 1 HP WEG motor.
- Flocculant dosing pump with a 1 HP WEG motor.
- Alkalizing dosing pump, manufacturer: Prominent.
Approximate flow rate: up to 12 liters per hour.
- Alkalizing agent tank.
- Coagulant tank.
- pH controller.
- Fiberglass waste/grease trap with a capacity of 2 m³.
- Waste trap pumps.
With two sets of pumps with 3 hp SEW motors and a Netzsch helical pump.
The line was assembled in 2014 and operated from 2014 to 2016.
Flotation is a physical process used to accelerate the separation of solid particles and/or less dense liquids present in a liquid phase, due to the introduction of microbubbles of air into the liquid phase.
The microbubbles of air (average diameter of 30 microns) generated by the FAD system aggregate in the surface spaces of the solid particles, reducing their specific weight and raising them to the surface.
The separated solids are mechanically removed in the form of sludge, which has a much higher solids concentration than gravimetric sedimentation systems.
The clarified liquid phase has reduced levels of suspended solids and turbidity.
The Dissolved Air Flotation (DAF) system is a versatile piece of equipment used for the treatment of industrial effluents and wastewater, and also for sludge thickening.
Its main function is the efficient removal of suspended solids, oils and greases, and the reduction of the organic load in terms of BOD by up to 80%, depending on the characteristics of the effluent.
The DAF system can be used solely as a physical separation system or as a physical/chemical system with the addition of chemicals that provide a clarified liquid phase with reduced levels of suspended solids and turbidity.
Specifics of Dissolved Air Flotation (DAF) in Wastewater Treatment: The DAF system, in addition to reduced treatment time, produces a solids concentration (sludge) 5 to 10 times higher than gravimetric equipment (settling tanks, etc.), which Consultec PA replaces with the DAF system, excelling in both primary and secondary treatment after biological reactors.
Operation and maintenance manual included. |
