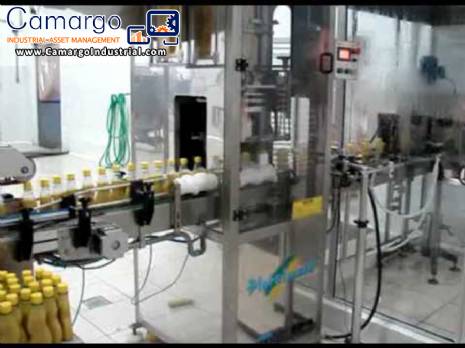

| Labeling machine Rotterm |
|
Heat-shrinkable label applicator.
Brand Name: Rotterm.
Model: M-1.
300 ml bottle format.
Application of up to 44 per minute.
Application speed: 2000 to 2800 bottles per hroa.
Diameter: As 300 ml bottle
height: 300 ml. bottle
coil Diameter: maximum 600 mm.
length: 700 mm.
width: 800 mm.
height: 2300 mm.
weight: 600 kg.
Power: 220 V-three phase-950 W-3.2.
: Motorized unwinding System (simple).
Cutting system: rotating.
Head type: Solenoid.
Variation: Approximately 1 mm.
system of accumulation in thread: does not follow.
Inspection system of end of coil: comes with.
Bottle separator system: Star (single).
Door open detection system: is not included.
Alarm indication system: Accompanies (visual and audible).
Tractor system: With stepper motor.
The lift system: Manual.
Noise level: below 78 DB(a).
Construction: Stainless Steel.
Panel View (HMI): Touch Screen Panasonic.
Controller (Plc): CLP Panasonic.
VFD: Danfoss.
Sensor: Tecnotron and Sick.
Engine: Voges and Bonfiglioli.
Thermo-shrinking system TV/R-1100/steam Tunnel in stainless steel.
-shrinkage speed: up to 3000 PCs/hour.
-steam connection: is needed for this system or system generated steam.
-controller: With control system PID (proportional, integral and derivative).
-equipment Power: 220 V/380 V-3-phase-9.5 Kw (maximum power).
-construction: stainless steel.
-structure length: 1100 mm.
-width of structure: 355 mm.
-height: 500 mm.
-weight: 150 kg.
-Control System of air flow: Accompanies (engine control pro VFD).
-pre-shrinking: System is not included.
-VFD: Danfoss.
-engine: Bonfiglioli/STM.
Steam generator GV-system 27.
-power control: 3 switching power néveis.
-equipment Power:
Step 1:220 V-three phase-7 kw.
Step 2:220 V-three phase-14 kw.
Step 3:220 V-three phase-21 kw.
-water control: for non-return valve.
-water level control: With two levels.
-low level detection system of water: Cut the tension and resistance make the indication in the Panel.
Construction: stainless steel.
TSP3000 stainless steel conveyor.
-working speed: adjustable.
-carrier length: 3000 mm
-conveyor width: 150 mm.
-carrier height: 130 mm.
-speed control: in the tunnel.
-chains: stainless steel. |
