| Steam boiler for 12,000 kg / h SFW |
|

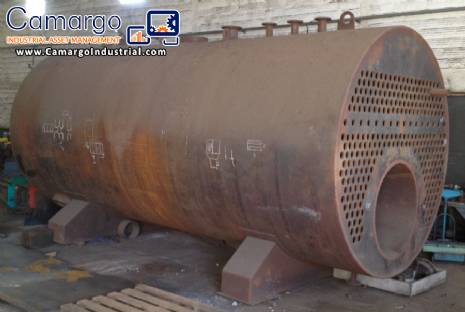

Steam boiler.
Convective body of the boiler, only sheet structure.
New equipment without use.
Brand: SFW Thermic Systems.
Year: 2014.
Capacity: 12,000 kg / h.
Pressure: 8 kgf / cm².
Outside diameter (mm): 2.680.
Length (mm): 6,000.
Maximum working pressure (kg / cm²): 08.
Pressure vessel construction material: ASTM-A-285-C steel plate.
Sheet thickness (mm): 15,87.
Number of mirrors: 4 Being 2 structural welded in the body and 2 internal to support the pipe.
Number of tubes: First pass: 159 units Second pass: 105 units.
Diameter of the tubes (mm): 76.2.
Number of passes: 3.
1st Pass - Fire Bush: Diameter 1.000 mm x 6.000 mm.
Exchange surface: 18.84 m².
2nd Pass - Tubular Beam: 105 tubes Diameter 3 "" with 6 meters Swap Surface: 150.34 m².
3rd Pass - Tubular Beam: 159 tubes Diameter 3 "" with 6 meters Swap Surface: 227.66 m².
Thermal exchange surface (m²): 396,84.
FOR BURNING FIRE AND / OR BIOMASSAS: Furnace steam production to be coupled (kg / cm²): 1.980.
Total steam production of the furnace-chair assembly (Kg / cm²): 11,900.
Boiler steam production (Kg / h): 9,921.
OR MAY BURN FUEL OIL.
Heat exchange area (m²): 396.84.
Steam production (kg / hr): 13,095. |
Brand:
SFW
|
|
|
|
|
|
Main suggestions:
|
|
 |
Brand: G.Mazzoni, H. Bremer, Mazbra Mazzoni, Mazzoni
Complete industrial line for manufacturing bar soap.
Composed of:
- Extruder for manufacturing bar soap.
Brand | manufacturer: G.Mazzoni.
Model: Triplex.
Approximate capacity: 3,000 kg/h of bar soap.
- Complete external vacuum tower... |
|
|
 |
Brand: FIMAK, Gás Service Industrial, Líder Indústria Mecânica
Pizza, bread and bakery dough production line.
Approximate productivity of up to 2,000 units per hour.*
*For discs between 150 mm and 250 mm.
Approximate productivity of up to 600 units per hour.*
*For discs between 250 mm and 500 mm.
Line... |
|
|
 |
Brand: Ziemann Liess, APV, Cleaver-Brooks, Filtec, Ingersoll Rand, KHS, STEINECKER
Complete Brewery Factory.
Approximate capacity: up to 10,000 bottles/hour for 600 ml bottles.
Equipment set for malt and gritz treatment, consisting of:
- Reception, cleaning and weighing.
Manufacturer | brand: ZIEMANN LIESS (Brazil).
... |
|
|
 |
Brand: Jocar, Macafe
Equipment for roasting and grinding coffee.
- Coffee roaster.
Manufacturer | brand: Jocar.
Model: Ecological.
Year: 2000.
- Diesel boiler with cooler.
Approximate capacity: 60 kg at a time (3 cycles per hour).
Year: 2000.
- Ha... |
|
|
 |
Brand: Rotia
Line for the manufacture of cereal bars brand new semi Rotia with approximately 15 m in length.
consisting of the following equipment:
-
-Laminator cutter.
-
cooling tunnel-Cozinhadores
-Buller.
-k12k * filling * system-water heating syst... |
|
|
 |
Glycerin distillery.
New installation, never used.
Composed of:
- Iron plate tank.
Approximate capacity: 30,000 kg each tank.
Quantity: 3 units.
Internal part with coils for steam heating and agitation of the liquid by air coil from... |
|
|
 |
Brand: CFS Slagelse A/S, Chiacchiera, FMC FoodTech, Gyrocompact Classic, New York Blower
2.185 / 5.000
Complete line for breaded meat protein products such as meat, CMS chicken and formatted or whole fish, pre-fried and frozen IQF.
Approximate productivity: 400 to 500 kg per hour depending on the product.
Year of the line: 2008.
... |
|
|
 |
Brand: Shanghai Zhongji Machinery
Equipment for expanding polystyrene.
Manufacturer/brand: Shanghai Zhongji Machinery Manufacturing Co. Ltd.
Model: JF - 1200 C.
Year: 2008.
The line operated from 2009 to 2023.
Line composed of:
- Boiler for heating and producing ste... |
|
|
 |
Brand: Jomar
Components: Allen-Bradley
Blow molding machine for PE, PS, PP and HDPE bottles.
Manufacturer: Jomar.
Model: 85S.
Injection and blow molding.
Year of manufacture: 2010
Origin: USA.
With manual.
Standard features:
1) Fully proportional hydraulics.
2) Al... |
|
|
 |
Brand: Bühler
Electronic grain sorting machine using an optical system.
Manufacturer brand: Bühler.
Model: Sortex J3 Spectra Vision JY3-TXTX-AXDB.
Production: 3 tons per channel.
Total production per hour: 9 tons depending on the product.
Year: 2022... |
|
|
 |
Brand: KHS, Mojonnier, Sabroe, Schulz, Ziemann Liess
Complete line plant for the production of beer and soft drinks.
Line composed of:
Bottle washer.
Manufacturer: Ziemann-Liess / KHS.
With 32 positions.
Year: 1994.
With tank system.
Linear rinser for bottles.
Nominal production... |
|
|
 |
Professional with more than 15 years of experience in chemical industry regulations and systems.
It has a company of industrial, environmental, certifications and NBR Standards.
PROFESSIONAL SUMMARY
Professional with vast experience in Managem... |
|
|
 |
Brand: Ata, Frigomaq, Incalfer, Sondex
Components: WEG
Sondex plate heat exchanger standard with plates in stainless steel AISI-316
heat exchange station smart-heat model with sondex plate heat exchanger mounted.
knives and sharpeners sterilizer Frigomaq
spray for disinfecting hands Frigomaq
kniv... |
|
|
 |
Machine for candy to put in the bag
Mixer with two axles
complete line of Dairy
Tube
Packinghouse to 15 Kg
3-wire machine mechanical Stretcher screens with a maximum capacity of 40 cm, 4 x 4 Carousel machine
machine to make baby socks, ... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
Complete line for the manufacture of glycerinated soap.
Composed by:
Extruder with 3 drawing boards.
Brand Name: Mazzoni.
Capacity: 500 kg / h.
Electrical panel of the line.
Feed pump.
Brand Name: Geremia.
With variator.
Br... |
|
|
 |
Brand: Miura
Industrial boiler.
Brand: Miura.
Model: LX - 200 - SG.
Production capacity of 3,165 kg / h.
Equipment quantity: 06 units.
MIURA standard economizer.
Air filter.
ASME and ULc seal stamped on each boiler.
Boiler water conductivi... |
|
|
 |
Brand: Tenge
Boiler for steam generation.
Brand: Tenge.
With gas burner GLP / PCS.
Calories: 12,000 Kcal / kg.
Maximum consumption: 65 kg / h.
Working pressure of 10.5 kg / cm2.
Year 1993.... |
|
|
 |
Brand: Zaccaria
Rice processing machine.
Capacity: 50 bags per hour.
Composed by:
Pre-cleaning of wood.
Brand: Zaccaria
Horizontal blower BHZ Zaccaria 2008 2.4 to 3.6 ton / h
Stone separator SDZ / CF-1.
Brand: Zaccaria.
Year: 2008.
Product... |
|
|
 |
Brand: Ata
Boiler Ata-2 h-3
Year-1976
vapor 500 kg/h
k12k * P.M.T. *: P: 10.55 kgf/cm ²
: 15.85 kgf/cm ²
heating surface: 15 m ²
Name
tubular fire boiler Boiler consists of horizontal cylindrical body, with gas-passing pipes, and furnace pla... |
|
|
 |
Brand: Eclipse engenharia e comércio
Wood-fired flame tube boiler for steam generation.
Manufacturer: Eclipse engineering and trade.
Model: HDM - 10.
Steam production: 10,000 kg / h.
PMTP: 12.0 Kgf/cm².
Test pressure: 18.0 Kgf/cm².
Heating surface: 447 m².... |
|
|
 |
Brand: Hobart, JHM, Milainox
Complete line for the production of cork type cassava.
Approximate capacity: up to 375 kg / h.*
*3 tons per day.
Line composed of:
- Stainless steel pans. (4 units to confirm availability).
Approximate capacity: 300 liters.
With winch a... |
|
|
 |
Brand: Ata
Boiler for steam generation.
Brand: Ata.
Model: H - 3N.
Production: 2,000 kg/h of steam.
Year: 1990.
Vaporization surface: 66m² M.P.T.A 150 pslg 10.55 kgf/cm².
Hydrostatic test: 225 pslg 15.82 kgf/cm².
Order number 8493.... |
|
|
 |
Brand: Technical caldeiras e serviços LTDA
Gas boiler.
Brand name: Technical caldeiras e servicios LTDA.
Year: 1995.
Model: T - V 2- Fogotubular.
Working pressure: 8.4 kgf / cm².
Proof pressure: 12.6 kgf / cm².
Are surface of vaporization: 20 m².
Steam production: 250 kgv... |
|
|
 |
Brand: Pratica
Combined electric oven.
Brand: Prática.
Model: EC20V.
Dimensions (cm): 108 x 98 x 197.
Capacity: 300 L.
Stainless steel equipment.
Door with tempered double glass.
Rounded corners and drain that facilitate hygiene.
Insulation:... |
|
|
 |
Brand: ETNA
Steam-generating boiler LPG gas ETNA.
Model: GV-200.
Fuel: Lpg.
Semi new, with a short time of use.
Year: 5/4/2012.
Technical description:
-steam production water 20° C: 200 Kg/h
-steam production 80° C water: 220 Kg/h
-effective ther... |
Others suggested equipment for you:
|
|
 |
Brand: J.G Equipamentos de Vapor
Steam generator JG EG-16.
heat Production-193,194 Kcal/h.
Evaporation with water at 115° C-216 kg steam per hour.
steam operation pressure 150 PSI-65a.
fuel consumption.
LPG Gas-14.00 kg/h
natural Gas-17 m ³/h.
Motor-0.75 ... |
|
|
 |
Brand: Incal
Coated tank for baking and processing of chocolate, creams and sweets.
Brand: Incal.
Model: JAA 22.
Material of equipment: Stainless steel.
Working Pressure: 150 LBS / Pol².
Capacity: 200 liters.
Voltage: 220 three-phase.
Compone... |
|
|
 |
Brand: Conservit
4000 Kg 10 Kg steam boiler pressure, fire in the belly conservit brand. 2 years of use. New pipe, pump and new Panel, new mirror.... |
|
|
 |
Brand: Ata
ATA 300/500 flow boiler.
With gas burner.... |
|
|
 |
Brand: Lidgerwood
Wood burning boiler.
W.V.V. LIDEREWOOD.
Steam with flow rate 500/600.
... |
|
|
 |
Brand: Conservit
Firetube boiler for wood.
Brand: Conservit.
Nominal output: 1500 kg steam per hour (with 750)
nominal working pressure: 10 kgf/cm ² (recommended up to 6)
length: 4 m
width: 2 m
without the chimney Height: 2.5 m.... |
|
|
 |
Brand: Elvi
FOOD COOKING BOILER BRAND ELVI ... |
|
|
 |
Brand: Ata
-Boiler-Mark 10:00 3 ATA-1300 KG/H
Year 2000-all reviewed with new wood furnace.
-boiler-ATA 2:00 pm Tag 3-2000 KG/H
Year 2002-all reviewed with new wood furnace.
-boiler-ATA 4:00 pm Tag 3-2002 KG/H
Year 2002-all reviewed with new wood ... |
|
|
 |
Brand: Ata, Braibanti, Pavan Group
Line composed by:
trademark boiler Ata, with production of 650 kg/h steam with heating surface to 20 m ³, 120 psig working pressure, test pressure 240 psig. GMP equipment fuel with electric control board.
Pneumatic flour with a capacity of 20... |
|
|
 |
Brand: Morganti
Boiler water heater boiler brand Morganti.
Model ET-60.
60,000 capacity Kcal / hour.... |
|
|
 |
Brand: Ata
Industrial boiler for steam production.
- Mark: Minutes.
- Year: 2000.
- Capacity: 1000 kgv / h.
- Boiler fueled by firewood.
- Equipment was operating, therefore, has boiler book and ART.... |
|
|
 |
Boiler.
Brand: Ata.
Model: Flamotubular Horizontal.... |
|
|
 |
Industrial boiler.... |
|
|
 |
Brand: Ata
Boiler.
Brand: Ata.
Year: 1986.
Capacity: 3 ton / hour.
Fuel: Firewood.
Working pressure: 150 psig.
... |
|
|
 |
Brand: Ata
Boiler used ATA brand.
TAG: ATA capacity: 1500 kg
fuel: wood
... |
|
|
 |
Complete line of spaghetti consisting of:
-extruder.
-automatic Dryer with complete rods.
-mixers.
-Mill to grind the leftover spaghetti to return.
-2 automatic packaging machines 500 g and 200 g
-Baler.
-boiler.
Production capacity... |
|
|
 |
Brand: Ata
Boiler ATA hull 5000 KG/H.... |
|
|
 |
Wood boiler.
Capacity of 400 kg.
New.... |
|
|
 |
Brand: Ata
Steam boiler/steam generator
Description: vaporação surface: 100 m ², 3 steam Deduction, 300Kgf/hr, 18 Ata-model H-3... |
|
|
|
|
Visitation: Schedule date for visitation and check equipment availability. Merely illustrative images.
|
|
|
| |
|
|
