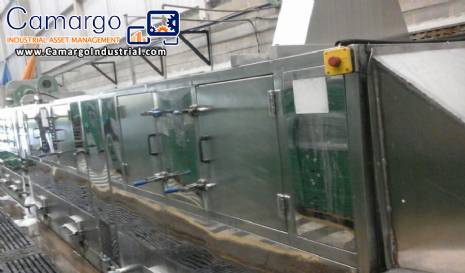

| Washer of cashier Subra |
|
Lavadora de Caixa Subra.
Modelo: CT47.
Ano: 2008.
CAPACIDADE 540 Unidade / Minuto.
Composta de:
- DOS AQUECIMENTO tanques: 90 kw.
- AQUECIMENTO fazer sopro: 24 kw.
- Bomba de pré-Lavagem: 7,5 kw.
- Bomba de enxágue: 7,5 kw.
- Motoredutor principais: 0,55 kw.
- Motoredutor paralelo: 0,25 kw.
- Motor de Abastecimento com tanque: 2,2 kw.
- Motor de sopro sujidade parágrafo removedor: 0,75 kw.
- Exaustor: 3,0 kw.
- Pressao dos Jatos de Lavagem: 6,0 bar.
- CAPACIDADE da bomba de pré-Lavagem: 540 litros por Minuto.
- CAPACIDADE da bomba de Lavagem: 540 litros por Minuto.
- CAPACIDADE da bomba de enxágue: 540 litros por Minuto.
- Ventilador Secagem (2x): 4,4 kw.
- Velocidade da Esteira: 0 a 20 m / Minuto.
- Válvula solénoïde: 220 VCA.
- Temperatura de pré-Lavagem: 50-60 ° C.
- Temperatura de Lavagem: 50-60 ° C.
- Temperatura de enxágue: 50-60 ° C.
- CAPACIDADE de Cada Reservatório: 1200 litros.
- Potência Instalada: 152,05 kW.
- Tensão: 380 V.
- Frequência: 60 Hz.
- Nivel de Ruido: 80 dB.
- Dimensões:
Altura: 1,640 mm.
Largura: 1.600 mm.
Comprimento: 15.000 mm.
Peso: 9.000 kg. |
Brand:
Subra
|
|
|
Main applications:
Food industry
|
|
Main suggestions:
|
|
 |
